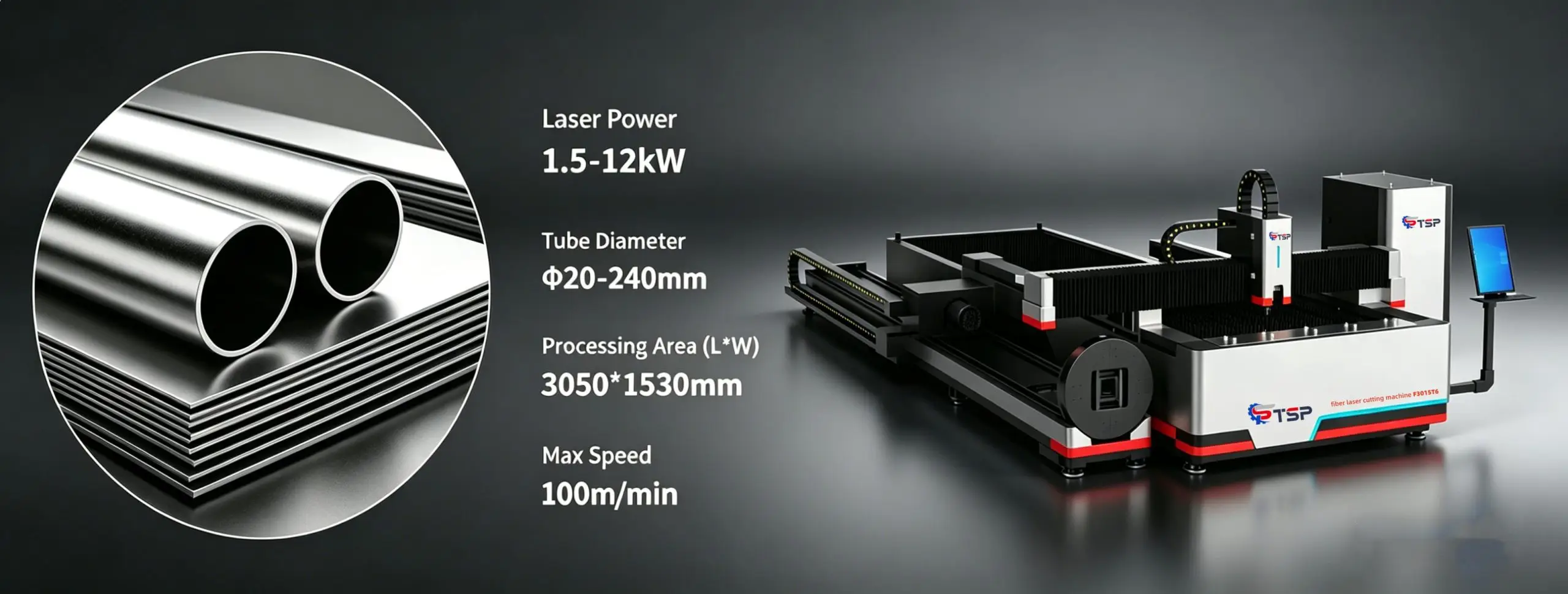

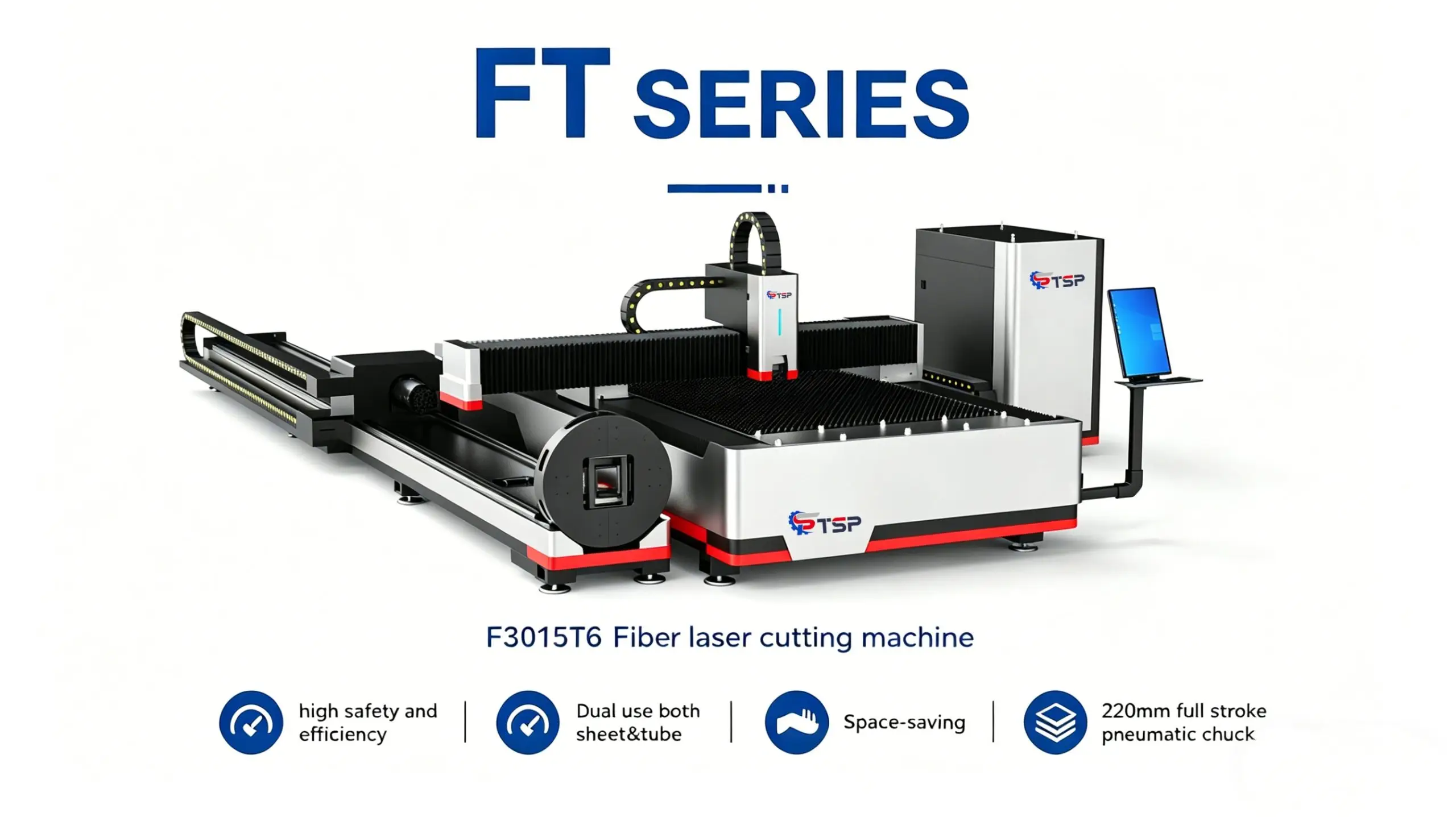

F3015T Fiber Laser Cutting Machine for sheet and tube metals, specially designed for carbon steel. Fast, precise, and perfect for industrial metal processing and fabrication.

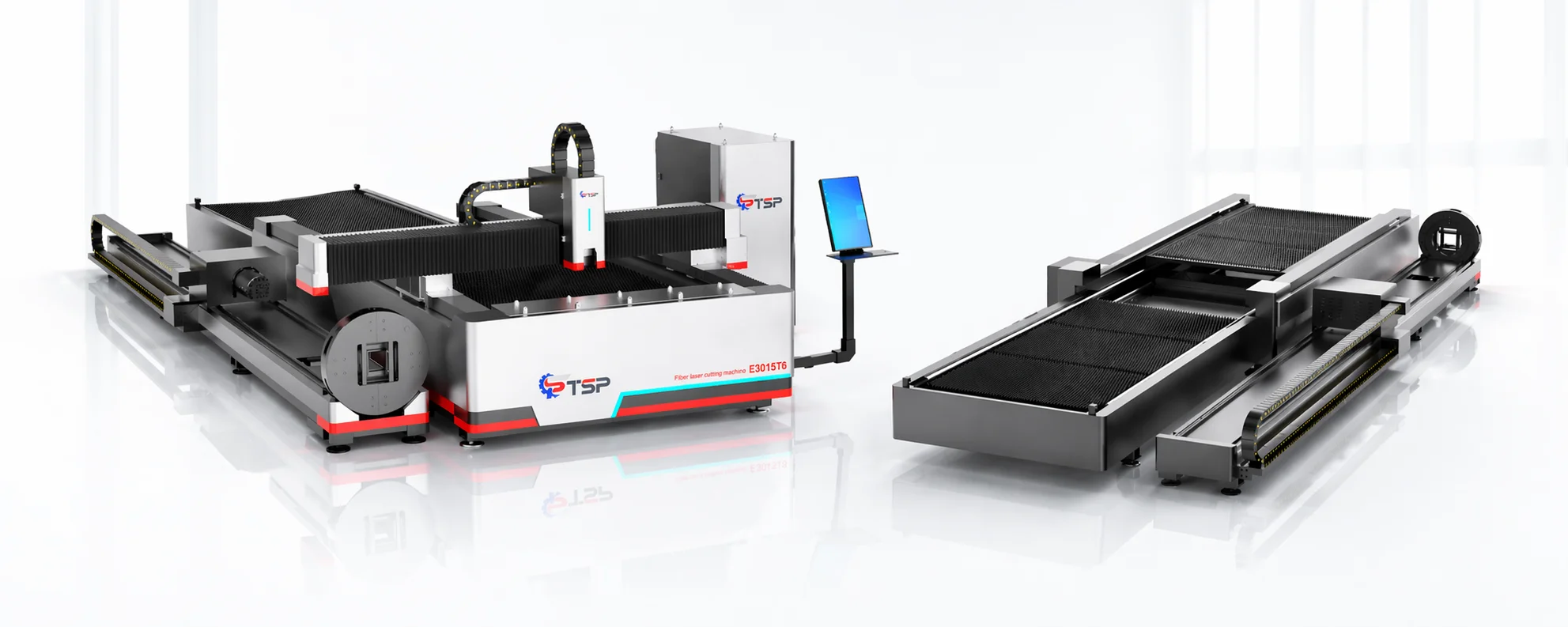

Dual-function design enables both sheet and tube cutting on a single machine. It cuts equipment investment, saves factory floor space, and greatly enhances production flexibility.
Focused laser beam enables accurate, clean cutting, ideal for high-precision applications.
Fast cutting speed with adjustable power and motion improves productivity. Non-contact processing reduces time and supports mass production.
Programmable cutting allows easy adaptation to different shapes, especially complex contours in sheet metal.
Suitable for a wide range of metals, including high-hardness and high-melting-point materials. Minimal heat impact ensures less deformation and reduced post-processing.
Built with an 8 mm thick and 880 mm high body structure, the high-rigidity bed features outstanding load-bearing performance to ensure stable operation of multi-kilowatt laser systems. Fitted with standard ball transfer units, it enables smooth, labor-free sheet feeding, effectively boosting working efficiency and lowering labor intensity.
Features a 240mm square chuck with a maximum load capacity of 260kg. It delivers an extended clamping range, perfectly compatible with round, square and rectangular tubes for versatile processing.
| Parameter | Specification |
|---|---|
| Laser Type | Fiber Laser |
| Cutting Area (Customizable) | 3000x1500mm, 4000x1500mm, 6000x1500mm, 4000x2000mm, 6000x2500mm, 8000x2500mm |
| Cutting Speed | 120 m/min |
| Graphic Format Supported | AI, PLT, DXF, DWG |
| Cutting Thickness | 1mm - 30mm |
| CNC or Not | Yes |
| Cooling Mode | Water Cooling |
| Control Software | Au3tech |
| Working Voltage | 220V/380V 50-60Hz |
| After-sales Service | 24 hours Online Support, 1 to 1 on-site installation guidance |
