1๏ธโฃ TAPM1010 โ High Speed CNC Punching, Marking & Shearing Line For Angles
Application Industry: This machine is the automatic special production line used for angle steel marking, punching (round hole, slot hole) and shearing, mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.
โ๏ธ Key Features
- Feeding speed and punching speed are very fast โ for 50ร50ร4mm angles, it can process 9 to 10 tons per 8 hours.
- PLC mold control, servomotor feeding โ high efficiency, stable processing precision.
- Easy programming โ instruction programming and lofting software. Reads .NC1 files generated by TEKLA software.
- All marking, punching and shearing in automatic completeness โ finished angles unloaded by pneumatic turnover device.
- Marking unit adopts closed frame with good rigidity.
- Single blade shearing โ saves raw material.

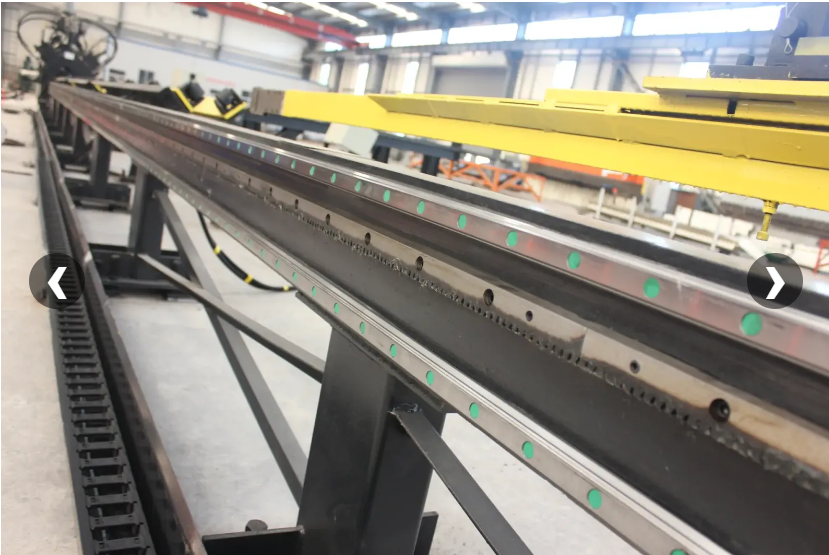

- Feeding conveyors use double linear guides โ carriage is latest design for improved speed and accuracy.
๐ Technical Specifications
| Model | TAPM1010 | TAPM1010-2 | TAPM1010-3 |
|---|---|---|---|
| Functions punching, marking, shearing | |||
| Angle size (mm) | 40ร40ร3 ๏ฝ 100ร100ร10 | ||
| Max. punching (DรT) (mm) | ะค26ร10 | Round holes ะค26ร10, Slot hole 22ร50mm | |
| Punching force (kN) | 600 | 1000 | 1000 |
| Marking force (kN) | 630 | ||
| Shearing force (kN) | 1200 | ||
| Max. length of blank (m) | 10 or 12 | ||
| Max. length of finished (m) | 8 | ||
| Qty. of punch on each side | 2 | 2 | 3 |
| Qty. of marking group | 4 | ||
| Character size (mm) | 14ร10ร19 | ||
| CNC axis | 3 | ||
| Shearing mode | Single blade | ||
| Angle feeding speed (m/min) | 80 | ||
| Programming mode | Lofting software or instruction programming | ||
| Overall dimensions (m) | About 25ร6.5ร2.5 | ||
| Net weight (kg) | About 13000 | About 14000 | About 14300 |
