⚙️ SCM Plate Processing Line
High‑speed punching, drilling, marking for steel plates – ideal for tower and heavy fabrication industries

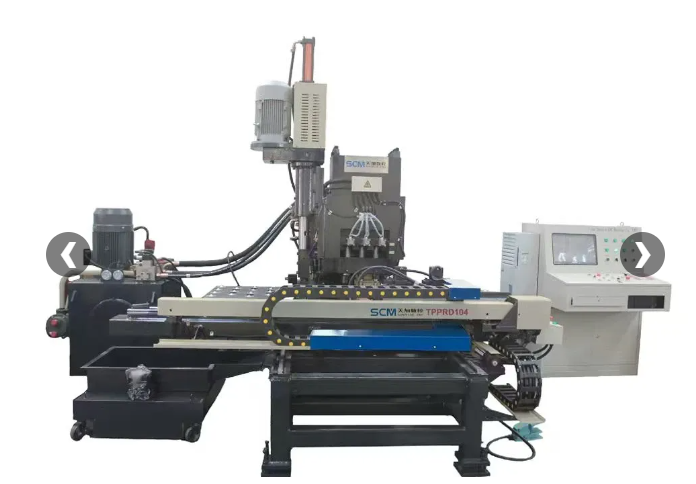

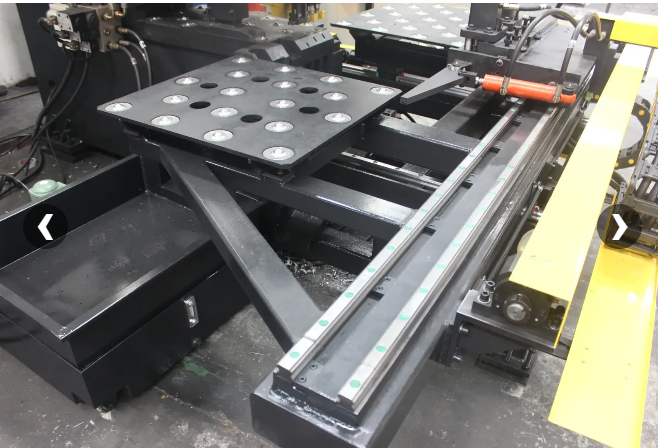

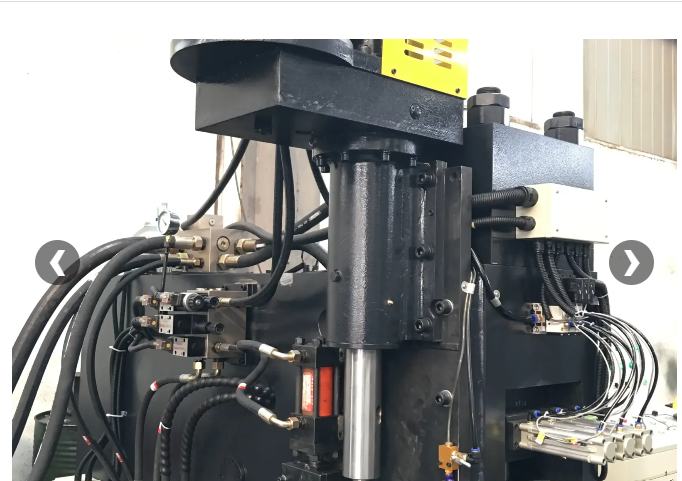

1️⃣ TPPD104 / TPPRD104 (Enhanced) – CNC Plate Punching, Drilling & Marking Machine

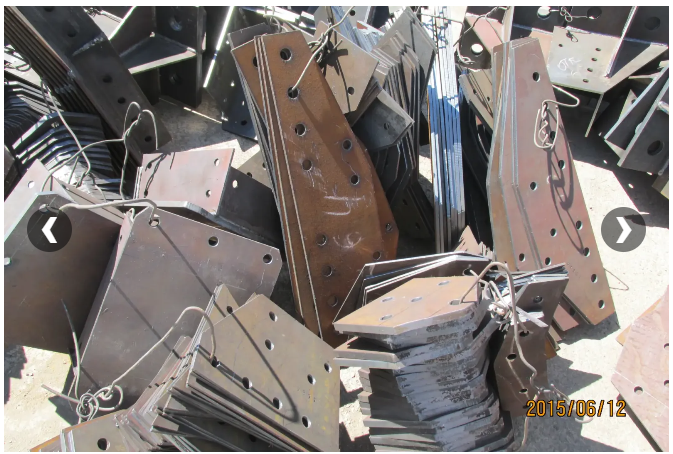

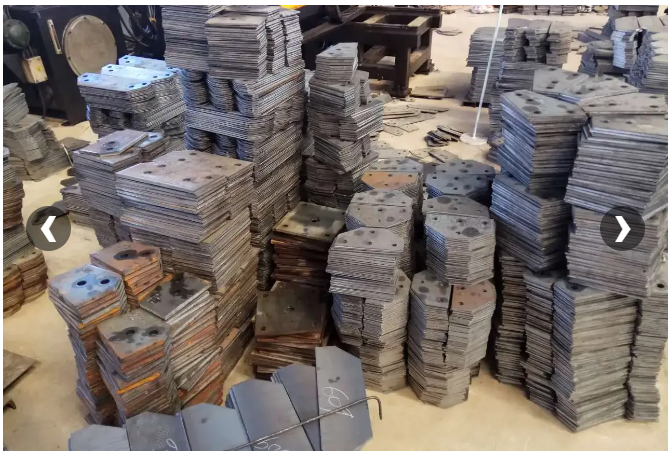

Applicable Industry: Special CNC machine for punching, drilling and marking of steel plates in the steel tower industry. Also used for other industrial steel plates.
⚙️ Key Features
- C‑type plate welding frame – good rigidity, large handling space

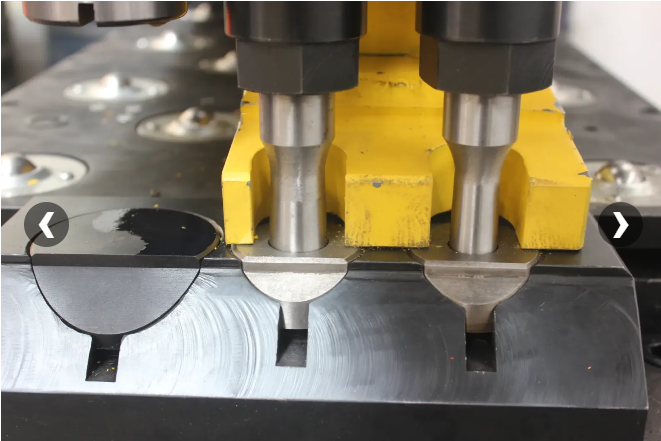

- TPPD104/TPPRD104: 4 die‑stations (2 punching, 1 marking, 1 drilling)
- TPPD104-4/TPPRD104-4: 5 die‑stations (3 punching, 1 marking, 1 drilling) – automatic switching
- CNC technology, servo motor feeding – high efficiency, stable precision
- Modular assembly of key components – easy repair
- Punching, drilling and marking on one plate
- Reads CAD drawings and TEKLA lofting files (.NC1)
- Self‑diagnosis failures function
- X/Y axes: servo motor + ball screw + linear guide
📊 Technical Specifications
| Model | TPPD104 | TPPRD104 | TPPD104-4 | TPPRD104-4 |
|---|---|---|---|---|
| Max. workpiece size L×W (mm) | 1500×1000 | |||
| Max. punching diameter (mm) | Φ26 round | Φ26 round, 22×50 slot | Φ26 round | Φ26 round, 22×50 slot |
| Plate punching thickness (mm) | 5-25 (Q235) | 5-25 (Q345) 5-20 (Q420) | 5-25 (Q235) | 5-25 (Q345) 5-20 (Q420) |
| Max. drilling diameter (mm) | Φ50 | |||
| Max. drilling thickness (mm) | 40 | |||
| Punching force (kN) | 1000 | 1200 | 1000 | 1200 |
| Marking force (kN) | 800 | 1000 | 800 | 1000 |
| Min. hole-to-edge distance – Punching (mm) | 25 | |||
| Min. hole-to-edge distance – Drilling | Depends on hole diameter | |||
| Character dimension (mm) | 14×10×19 | 14×10×19 | 14×10×19 | 14×10×19 |
| Qty. of characters | 12 | 16 | 12 | 12 |
| Die‑stations | 4 | 5 | ||
| Drilling feeding speed (mm/min) | 25～280 | |||
| Drilling spindle stroke (mm) | 180 | |||
| Drilling spindle rotation speed (r/min) | 120～560 | |||
| Programming mode | Auto CAD or lofting software | |||
| Overall dimensions L×W×H (m) | ≈3.2×3×2.6 | ≈3.4×3.2×2.6 | ≈3.2×3×2.6 | ≈3.4×3.2×2.6 |
| Machine weight (kg) | ≈6000 | ≈7400 | ≈6100 | ≈7700 |
2️⃣ TPPRHD103 – High Speed CNC Punching, Drilling & Marking Machine (High Tensile Plates)
Specifications and images coming soon.
📞 Inquire3️⃣ TPHD2016 / TPHD3016 / TPHD4016 – High Speed CNC Drilling Machine
Specifications and images coming soon.
📞 Inquire4️⃣ TPM2020 / TPM2525 / TPM3030 – High Speed CNC Drilling Machine (Plates & Tube Sheets)
Specifications and images coming soon.
📞 Inquire5️⃣ TPM4040 / TPM5050 / TPM6040 – CNC High Speed Drilling Machine (Plates & Tube Sheets)
Specifications and images coming soon.
📞 Inquire6️⃣ TPHD2020 / TPHD2525 / TPHD3030 / TPHD3020 / TPHD3530 – Gantry Movable High Speed CNC Drilling Machine
Specifications and images coming soon.
📞 Inquire
